CNC machining is extensively used due to its lightweight ability to be corrosive and resistant to aluminum. A major challenge, however, has proven to be preventing warping during the cooling process. It is caused by internal stresses, rapid temperature changes, or improper furnace techniques. To minimize distortion while producing high-quality CNC machined aluminum parts, manufacturers must follow certain guidelines.
Understanding the Causes of Warping
Factors contributing to warping in CNC machined aluminum parts include：During machining, irregular material removal or excessive heat buildup leads to residual stresses. Different parts of the aluminum piece can cool at different rates, which can deform the piece. Inappropriate fixturing, leaving the part without proper support, leads to uneven stress distribution, which increases the chance of warping.
Thin-walled designs are especially susceptible, since thinner sections cool faster than thicker sections which leads to non-uniform shrinkage. In addition, poor material selection can compound warping problems. Challenges in choices of alloy Selection of some aluminum alloys are more suited to some applications than others resulting in challenges in the selection of the correct alloy for a given application. An understanding of these factors and proper machining technique can help manufacturers minimize warping risk when machining aluminum to CNC machined aluminum components for added precision and reliability.
Proper Machining Techniques to Prevent Warping
Since the machining parameters are accurately controlled to minimize warping in CNC-machined aluminum parts, further efforts to improve part quality are generally directionless. However, cutting too heavily can result in too much heat and internal stress. A high-speed light-cutting approach will reduce the heat buildup. The cutting forces and the stress on the material should be minimized by the use of sharp cutting tools. You can maintain an even cutting path which will not warp due to uneven stress distribution.
The use of the right fixturing techniques one way enables us to prevent warping. Support of the workpiece should be provided with custom fixtures to evenly support the workpiece. Usually, custom metal machining services offer specialized fixtures for complex aluminum parts. Effective fixturing is to use soft jaws or completely vacuum fixtures to control excessive clamping pressure, to support the part as close as possible to the cutting area to minimize deflection, and use stress relief cuts in machining to prevent buckling during the cutting process.

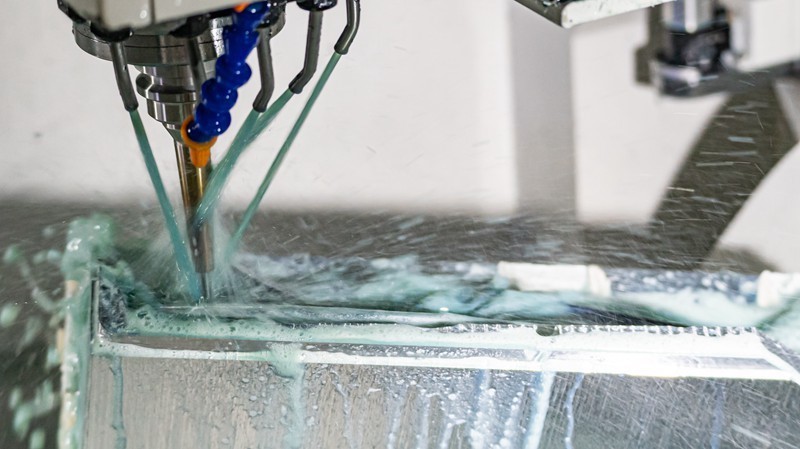

Also, warping in CNC machined aluminum parts is caused by heat buildup. Therefore, to avoid excessive heat, coolant or lubrication must be used to cool the cutting area. Solutions to minimizing heat generation are to reduce spindle speed and feed rate. Taking light and consistent cuts prevents sudden temperature changes that could lead to warping.
Best Cooling Practices to Prevent Warping
Aluminum parts should be machined and then cooled gradually. Rapid contraction and warping can occur after sudden temperature drops. However, the best cooling practice is to place parts in a temperature-controlled environment and put them on a cooling rack to spread out temperature evenly then avoid touching cold air or water immediately after machining.
An effective heat treatment for relieving internal stresses in CNC machined aluminum parts is before or after completion. The most widely used is annealing, which consists of heating the aluminum to a particular temperature and slowly cooling it to relieve internal stresses. Solution heat treatment is done by heating and quenching aluminum in control to increase its stability. Another technique where aluminum is subjected to an intense aging process is aging, wherein the aluminum is held at a moderately high temperature for a long time to bring in its mechanical properties.
Residual stresses from post machining techniques are less and the part stability is improved. Some good ways of doing this are vibratory stress relief where vibration redistributes inside stresses and shot peening wherein, we bombard the area with little heads in order to reinforce surface strength and restrain warping. Material stability is also achieved by cold working (mechanical pressure).
Material Selection for Better Stability
Thermal expansion rates and internal stress behaviors vary between different aluminum alloys, which dictate their warping tendency. Material selection is a crucial factor in achieving stability, as some grades are more susceptible to deformation than others. Manufacturers should use custom metal machining techniques to select the most appropriate alloy for an application so they can build something precise.
Because they minimize dimensional changes during machining and cooling, alloys with lower thermal expansion, such as 6061 or 7075, are preferred. On the other hand, high internal stress alloys should be avoided unless they have been subjected to appropriate heat treatment to relieve residual stresses before machining.
Design Considerations to Reduce Warping
Warping resistance is greatly affected by the design of a part. To prevent excessive variation in cooling rates, engineers should therefore provide uniform wall thickness. Round corners are introduced to lower the possibility of stressing material deformation. In addition, symmetrical designs are better since they cool more evenly than asymmetrical designs, and stress imbalances due to warping are homogenized.
The other effective design strategy is to decrease thin-walled sections where they are more vulnerable to rapid chilling and uneven shrinkage. Gradual transitions of thicknesses can assist in the even distribution of stress if thin sections are needed.
Using these design principles, manufacturers can achieve higher dimensional accuracy and structural integrity of CNC machined aluminium parts. Thoughtful material selection and design strategies for implementing high-quality components with little risk of warping, and in fact, high performance and reliability in custom metal machining applications.
Conclusion
To prevent warping in CNC machined aluminum parts you need a combination of careful design, machining techniques, and material selection. Minimizing distortion requires proper fixturing, optimizing machining parameters, and minimizing heat generation. Custom metal machining services can also help in designing and making aluminum parts with less warping risks.
Slow cooling processes, stress relief treatments, and post machining techniques provide additional part stability. With these best practices in place, businesses can produce high-precision aluminum components with consistent quality and improve product reliability and performance in a wide variety of industries.
